4YZP-4FGA

型号 Model			4YZP-4FGA
结构型式 Structural type		/	轮式、摘穗、剥皮、秸秆还田 wheel type, ear picking, peeling, straw returning
外形尺寸（长×宽×高） Dimension (L×W×H)		毫米mm	7310×2580×3490
整机质量Mass of complete machine		千克kg	9000
收割台 Header	割台型式Header type	/	卧式horizontal type
	工作行数（通道数）Number of operating lines (number of channels)	行	4
	行距row pitch	毫米mm	560
	工作幅宽Working breadth	毫米mm	2340
	摘穗机构型式Type of ear picking mechanism	/	摘穗板式 Picking Plate
	摘穗辊数量Number of ear picking rollers	件	8
升运器 lift conveyer	果穗升运器布置位置Layout of ear elevator	/	中置 Center placed
升运器 lift conveyer	果穗升运器结构型式Structural type of ear elevator	/	链条刮板式 Chain scraper type
发动机 Engine	型号Model	/	240GIV
	型式Type	/	六缸、直列、四冲程、高压共轨 Six-cylinder, in-line, four-stroke, high-pressure common rail
	气缸数Qty of cylinders	/	6
	标定功率Rated power	HP/KW	240HP/176.5KW
	标定转速Rated speed	r/min	2200
剥皮机 Peeler	剥皮机构型式Type of stripping mechanism	/	橡胶辊 Rubber roller
剥皮机 Peeler	剥皮辊数量Number of stripping rollers	个	20
还田机 Field returning machine	型式Type	/	甩刀式 Swing blade type
	秸秆粉碎还田机构位置 Location of straw crushing and returning mechanism	/	前后轮胎之间 Between front and rear tires
	秸秆粉碎还田机构工作幅宽 Working Width of Straw Crushing and Returning Mechanism	毫米mm	2250
驾驶室型式Type of cab		/	豪华空调驾驶室 Luxury air-conditioned cab
变速机构型式： Type of transmission mechanism：		/	机械变速箱+静液压无级变速 Mechanical transmission+hydrostatic stepless transmission
驱动型式Driving Type：		/	两驱Two drive system
最小离地间隙Mini clearance：		mm	240
作业速度 Working speed：		km/h	2-6
驱动轮轮距Drive wheel track：		毫米mm	1860
导向轮轮距Guide wheel track：		毫米mm	1700
轴距wheel base：		毫米mm	3000
驱动轮轮胎规格： Drive wheel tire specifications：		/	子午线无内胎轮胎15R24 149A8 R-1 Radial tubeless tyre 15R24 149A8 R-1
导向轮轮胎规格： Specification of guide wheel tire：		/	斜交线无内胎轮胎400-60-15.5-16PR-I-3E Diagonal Tubeless Tire 400-60-15.5-16PR-I-3E
作业效率Productivity：		hm²/h	0.4-0.7
粮箱容积Grain tank：		m³	3.2
油箱容量 fuel tank capacity：		L	280

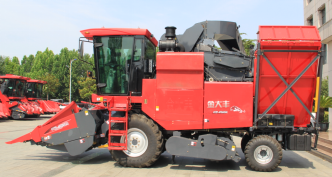

图片： image：








配置描述： Description of configuration:	六棱板拉茎辊，行距560，康明斯240马力国四六缸发动机，前置切碎，中置还田机2250，电磁阀，一杆操作，一泵一马达液压行走，前刹，后刹，20辊高低辊剥皮机，豪华驾驶室，钣金操控箱，仓满影像、倒车影像，单搅龙卸籽粒，配排杂吸风机，液压主离合，配动力输出，配北斗定位，配空调。 Six-edge plate pull stem roller, row spacing 560, Cummins 240HP national four-cylinder and six-cylinder engine, front chopping, middle field returning machine 2250, solenoid valve, one lever operation, one pump and one motor hydraulic walking, front brake, rear brake, 20-roll high and low roll peeling machine, luxury cab, metal plate control box, full warehouse image, reversing image, single auger grains unloading, equipped with exhaust fan, hydraulic main clutch, power output, Beidou positioning and air conditioning.
产品特点 Product Features：	“金大丰”4YZP-4FGA 型自走式玉米收获机，整机机构紧凑，转弯半径小；液压行走，一杆操作，掉头转场灵活机动。全新不对行辊式割台，适用玉米不同成熟期，适应范围比较广泛。 GOLD Dafeng "4YZP-4FGA self-propelled corn harvester has compact mechanism and small turning radius;Hydraulic walking, one-lever operation, flexible turnaround.The new non-row roller header is applicable to different maturity periods of corn, with a wide range of adaptability.
1.强劲动力:美国先进技术的康明斯240马力发动机，经济耐用，发动机配间隙紧密，震动小、噪音低! 2.操纵舒适:一泵一马达液压行走，原装内置空调。多功能电控手柄，，立柱式行车仪表，显示行车数据，方便驾驶员读取。挂倒挡还田机自动升起，驾乘更安全; 3.超强底盘:车架采用16型材，三角支撑梁结构，抗颠簸，耐冲击。驱动轮采用子午线轮胎抓地力更强。加宽型导向轮，防陷效果好。 4.高效作业:新型板式割台，强制拉茎，喂入时籽粒损失小。匹配加长前尖后，可收获倒伏玉米，边拨禾角度可调，适用行距范围广;20辊高效剥皮机，剥净率高; 5.保养便捷:传动链条采用自动润滑装置，剥皮机、风机轴承采用集中注油方式，保养省时省心。 6.智能科技:扫码注册手机APP后，可通过手机蓝牙与收割机互联互通，进行智能操控与故障排查。 1.Powerful power: Cummins 240 HP engine of American advanced technology is economical and durable, with tight engine clearance, small vibration and low noise! 2.Comfortable operation: one pump, one motor, hydraulic walking, original built-in air conditioner.Multi-function electronic control handle, column type driving instrument, display driving data, convenient for the driver to read. Shifting to the reverse gear will automatically lift the returning machine, making driving safer; 3. Super-strong chassis: the frame adopts 16 profiles and triangular support beam structure, which is resistant to bumping and impact.The drive wheel is equipped with radial tire with stronger grip. Widened guide wheel, with good anti-seffect. 4.High-efficiency operation: new plate header, forced stem pulling, small grain loss during feeding. With a long front tip, lodging corn can be harvested, and the reel angle can be adjusted, which is applicable to a wide range of row spacing; High-efficiency 20-roller stripping machine with high stripping rate; 5.Convenient maintenance: the transmission chain adopts the automatic lubrication device, and the stripping machine and fan bearings adopt the centralized oil injection method, which saves time and mind. 6.Smart technology: After scanning code and registering mobile APP, it can be interconnected with the harvester through mobile bluetooth for intelligent control and troubleshooting.
